Sung Wong Toi Station Pedestrian Link Bridge

Metro Railway Infrastructure BIM

About the Project

In order to provide a direct dedicated connectivity from south-eastern end of existing SUW concourse to Pak Tai Street, a Pedestrian Link comprising a new underground lobby and a long span footbridge to be provided for the railway passengers and pedestrians to cross Sung Wong Toi Road and Olympic Avenue.



BIM Scope of Work

  • Multi-Disciplinary BIM Modelling, Coordination, and Drawing Production for all disciplines, including underground service network, excavation, temporary and permanent works.

  • Rendered Walkthrough Animations of the Project

  • Construction Simulation of the Construction Works

  • Method Statement of the Concourse Breakthrough

  • Temporary Traffic Management Schemes

Project Information

  • Area - TBC

  • Duration - 4 Years

  • LOD - 500

  • Client - Arup

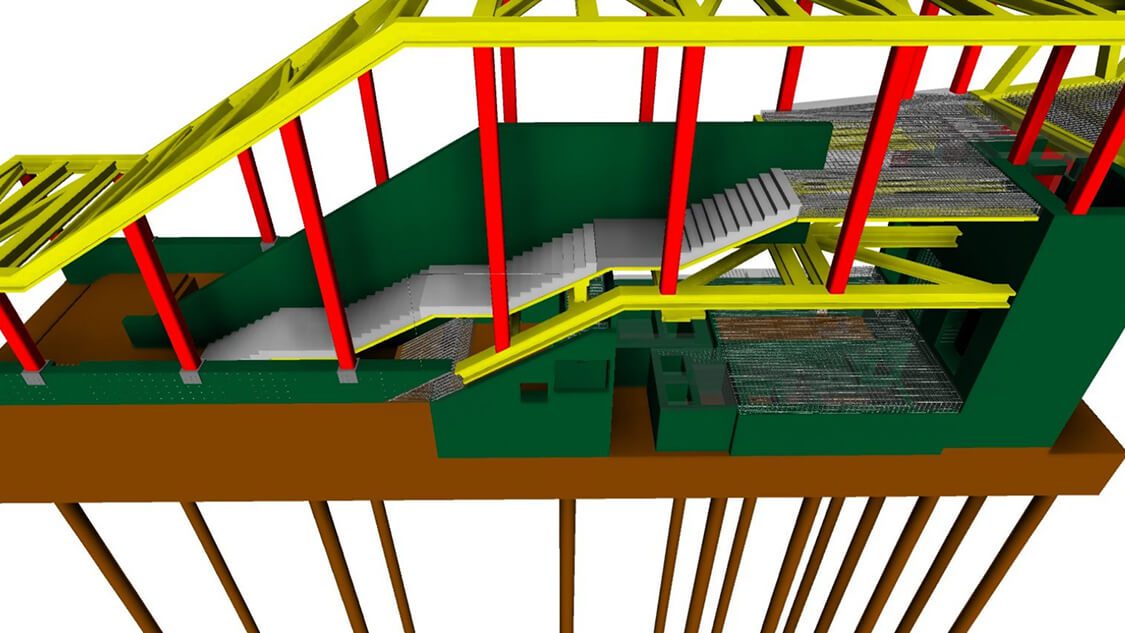

  • Pak Tai Street Entrance

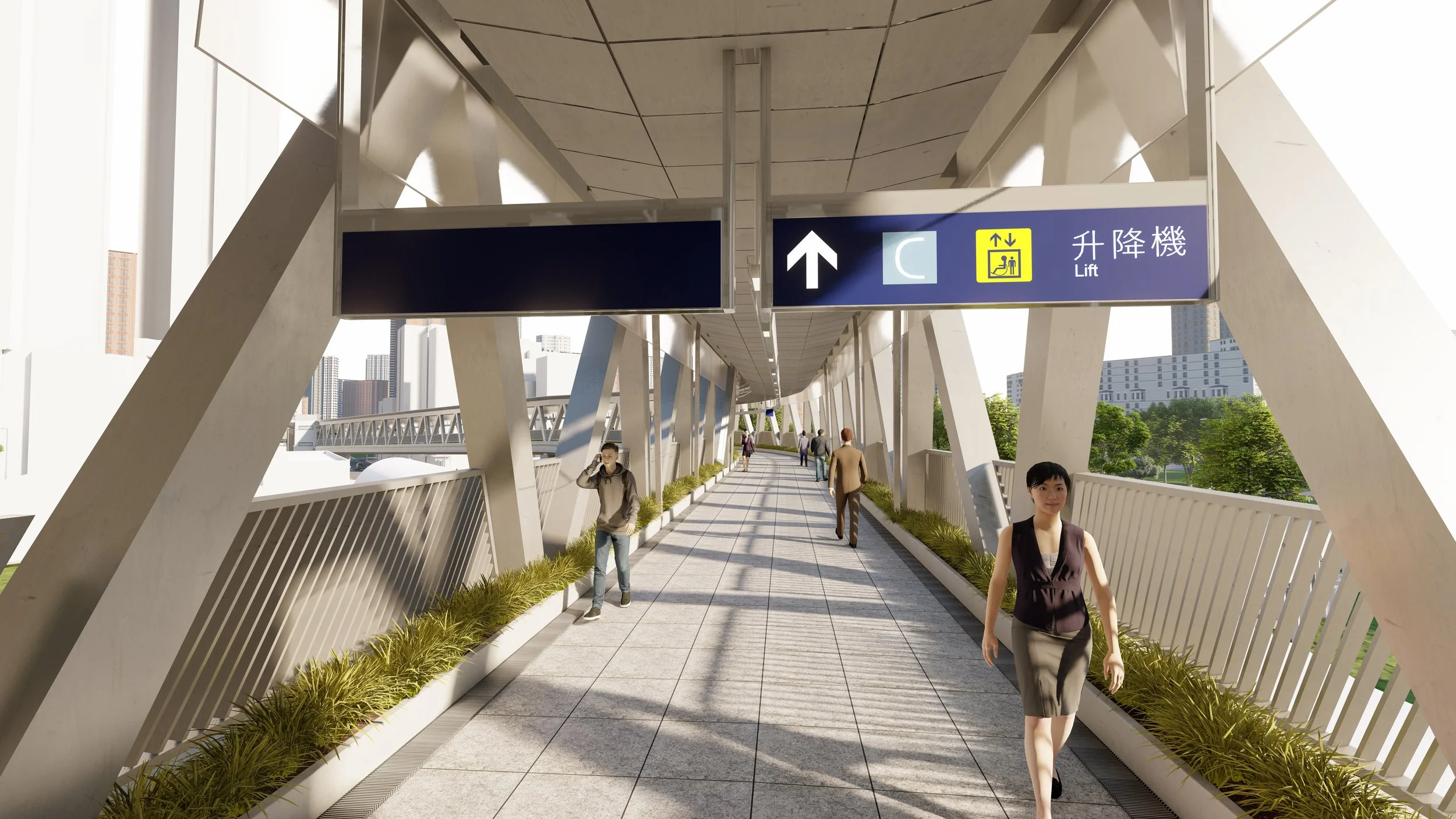

  • Footbridge

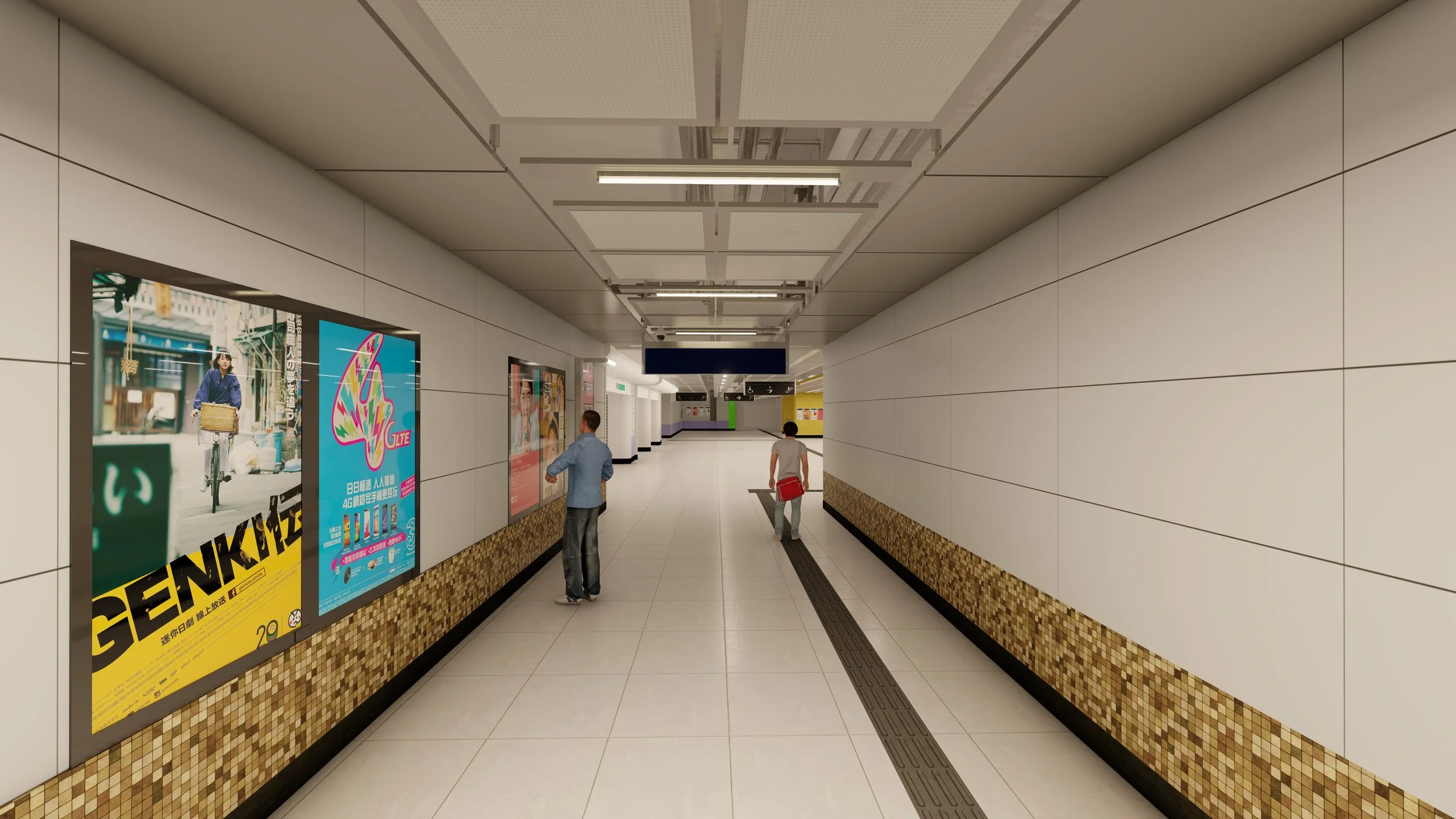

  • Concourse Level Entrance

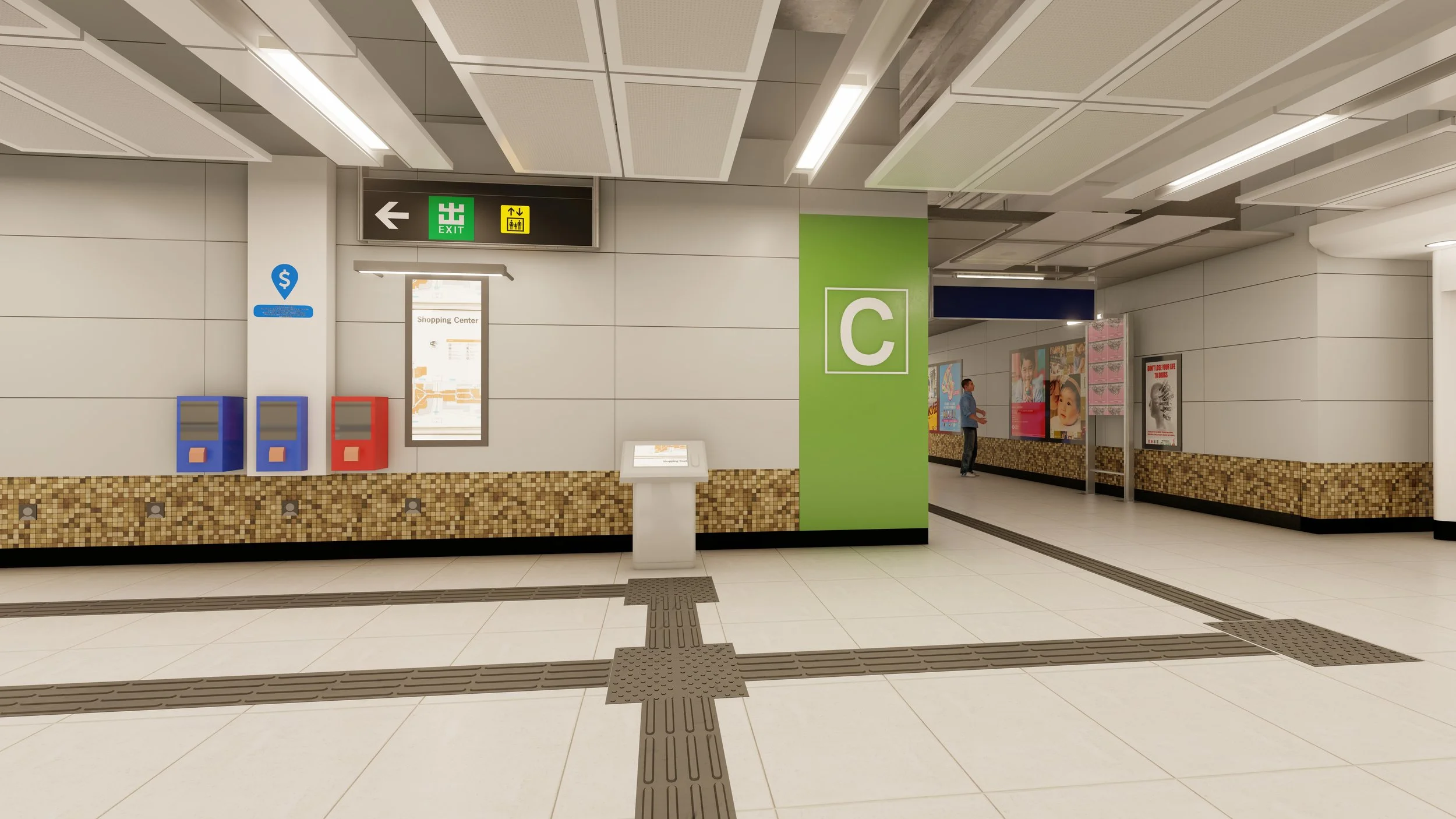

  • Exit 'C'
